Symbodi, 2023

Vertigun

A massage gun that mounts to the wall. I led it from concept to mass production.

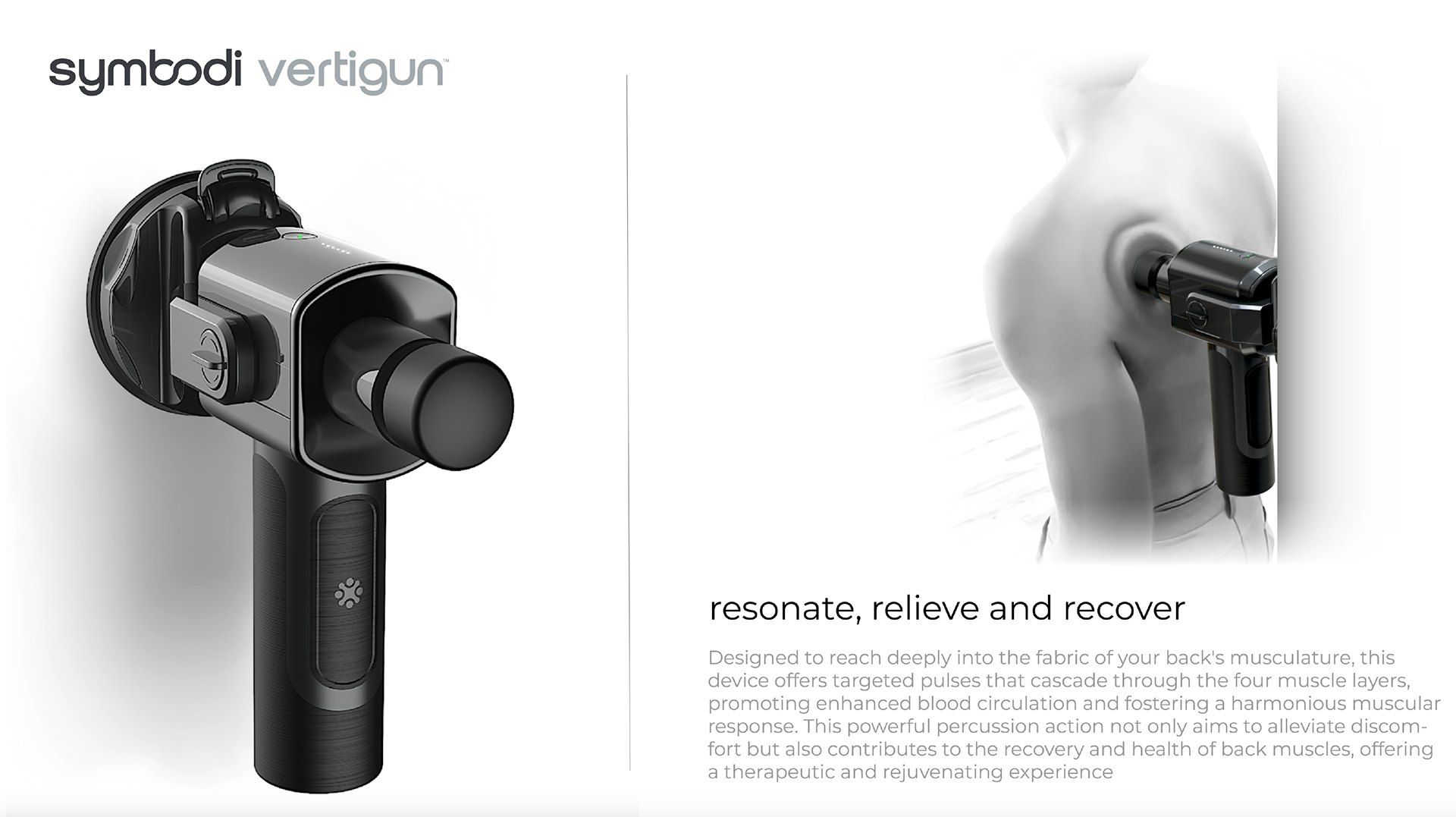

A rendered Vertigun massage gun mounted to a wall bracket, seen from the side.
The launch film. 3D animation I made for the launch.

In 3D, from the production CAD

Vertigun™, from every side.

Scroll to turn. Drag to look around.

Loading the 3D model

Client
Symbodi
Year
2023
My role
Product lead: design, engineering, manufacturing, packaging and launch
Forces
  • Design
  • Manufacturing
  • Launch

The problem

Massage guns are awkward to use on your own back. Every one you reach for needs a second pair of hands.

The limit

A massage gun shakes, and a suction mount has to hold anyway, on real walls, without twisting. The honest answer was to be clear about the limit: smooth, sealed surfaces only, re-seated every 30 minutes. So the user guide says exactly that, in pictures anyone can follow.

What I did

  • 3D modelling and prototyping.
  • Component sourcing and electronics design.
  • Packaging, the carrying case and the user guide.
  • 3D rendered launch animations.
  • On the ground in China: injection mould design, testing and retooling, assembly procedures and QA.

The result

Launched November 2023. Named one of Fast Company's Most Innovative Companies of 2024.

A person leaning their back against a wall-mounted Vertigun.
In use. The wall does the holding.

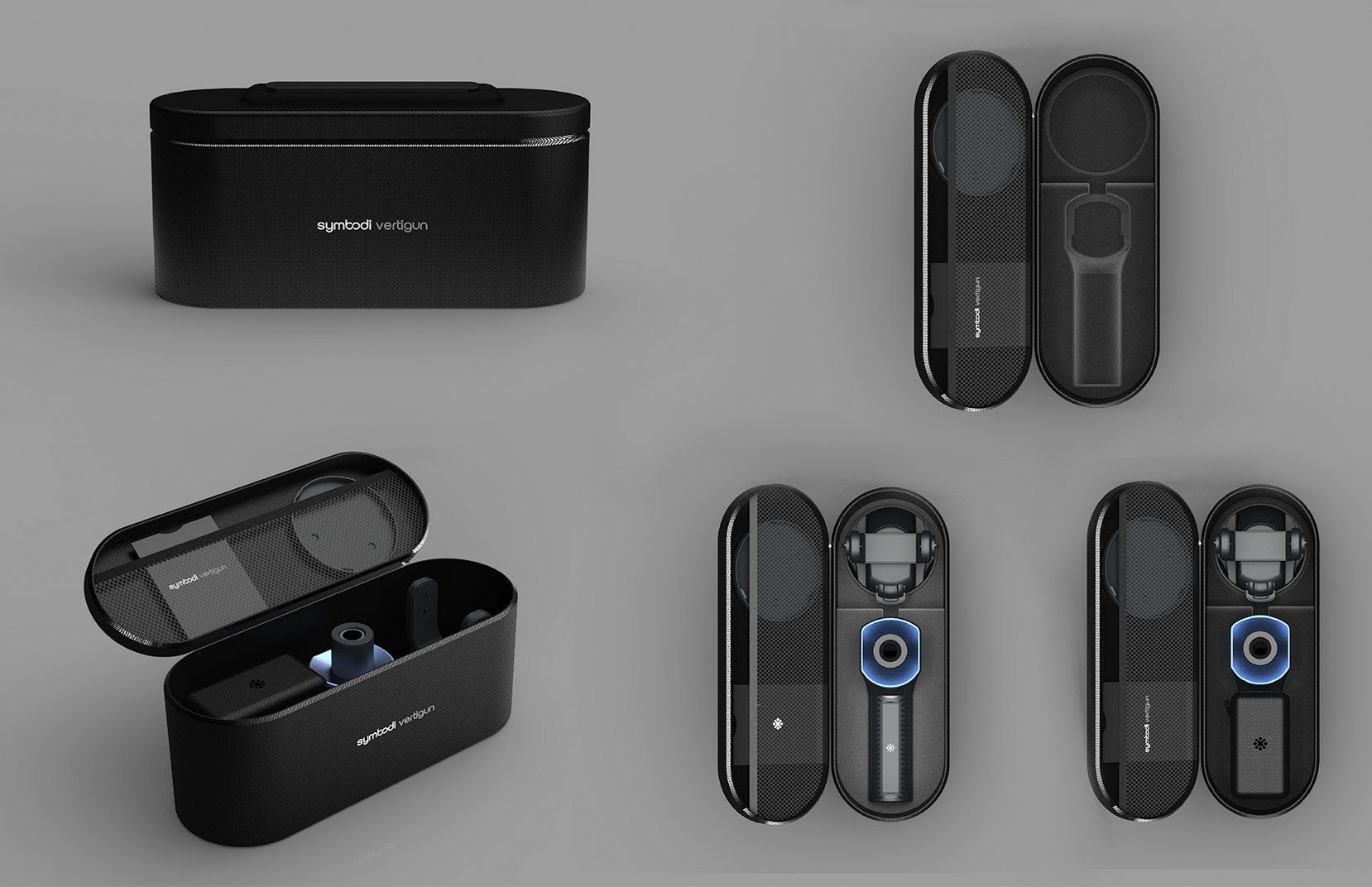

Renders of the Vertigun carrying case, open and closed.
The carrying case.
The Vertigun retail box, front and side.
Retail box.
A hand holding a black moulded part, with a note drawn on the photo that the mark needs to be fixed.
Sample review. The mark gets fixed before production.

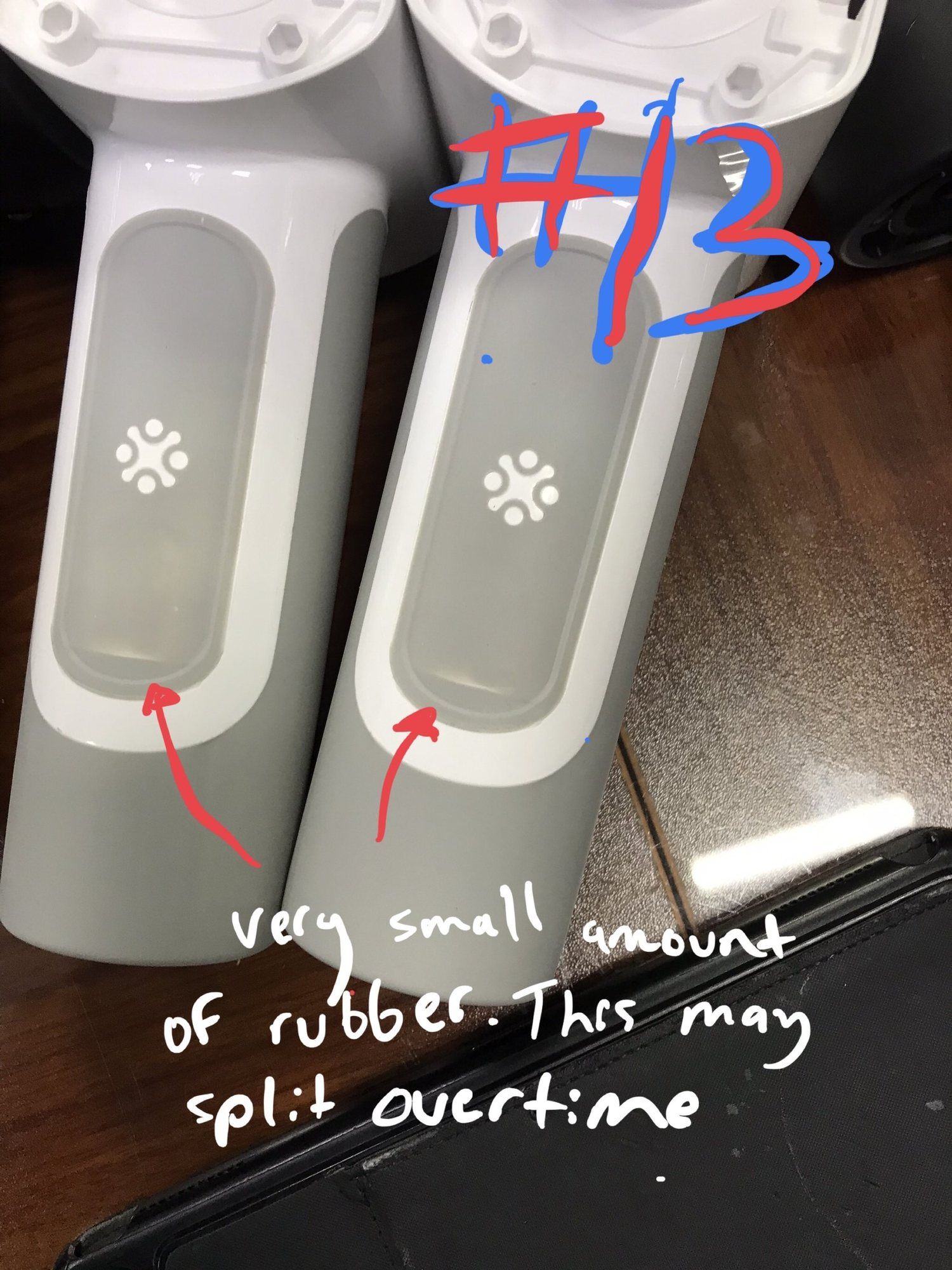

Two grey Vertigun handles, with a note drawn on the photo that a thin rubber section may split over time.
Too little rubber here. It could split over time.

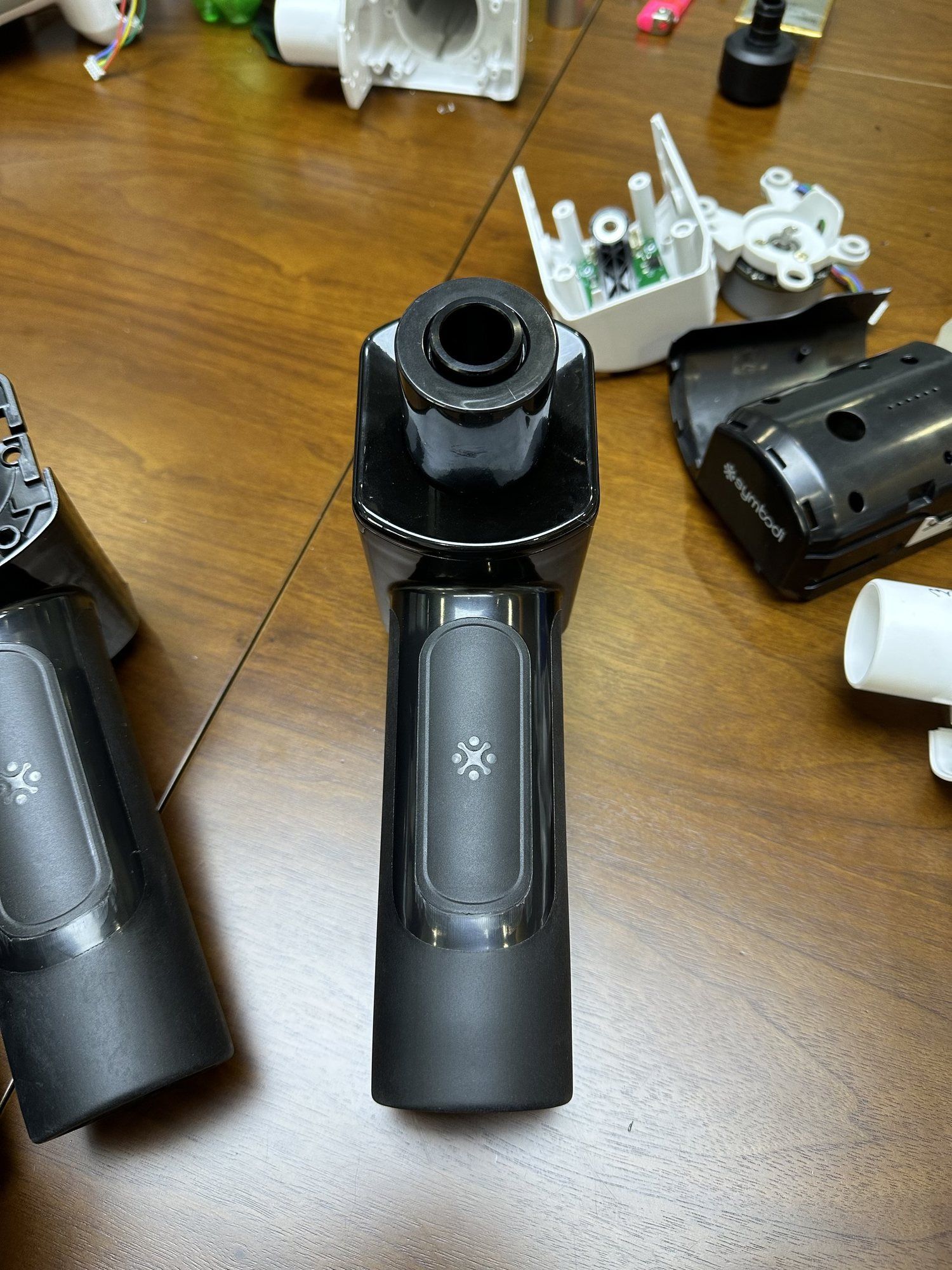

A black Vertigun production sample on a table beside open housings.
A production sample.
A steel injection mould opened to show a moulded housing in its cavity.
Inside the mould.

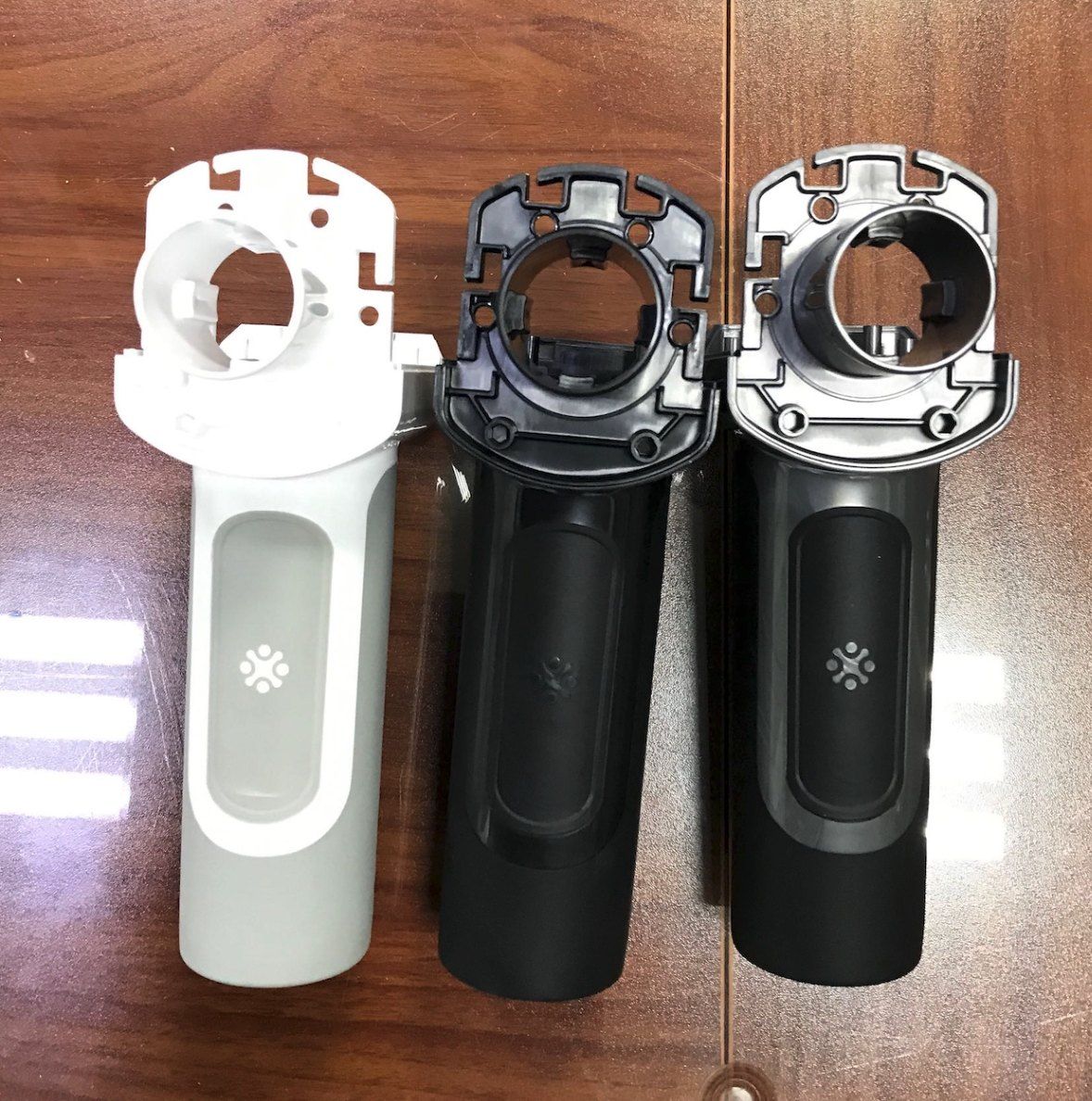

Three Vertigun housings side by side in white, black and grey.
First shots in three colours.
A first moulded part held up beside the press controller screen.
First shot at the press.

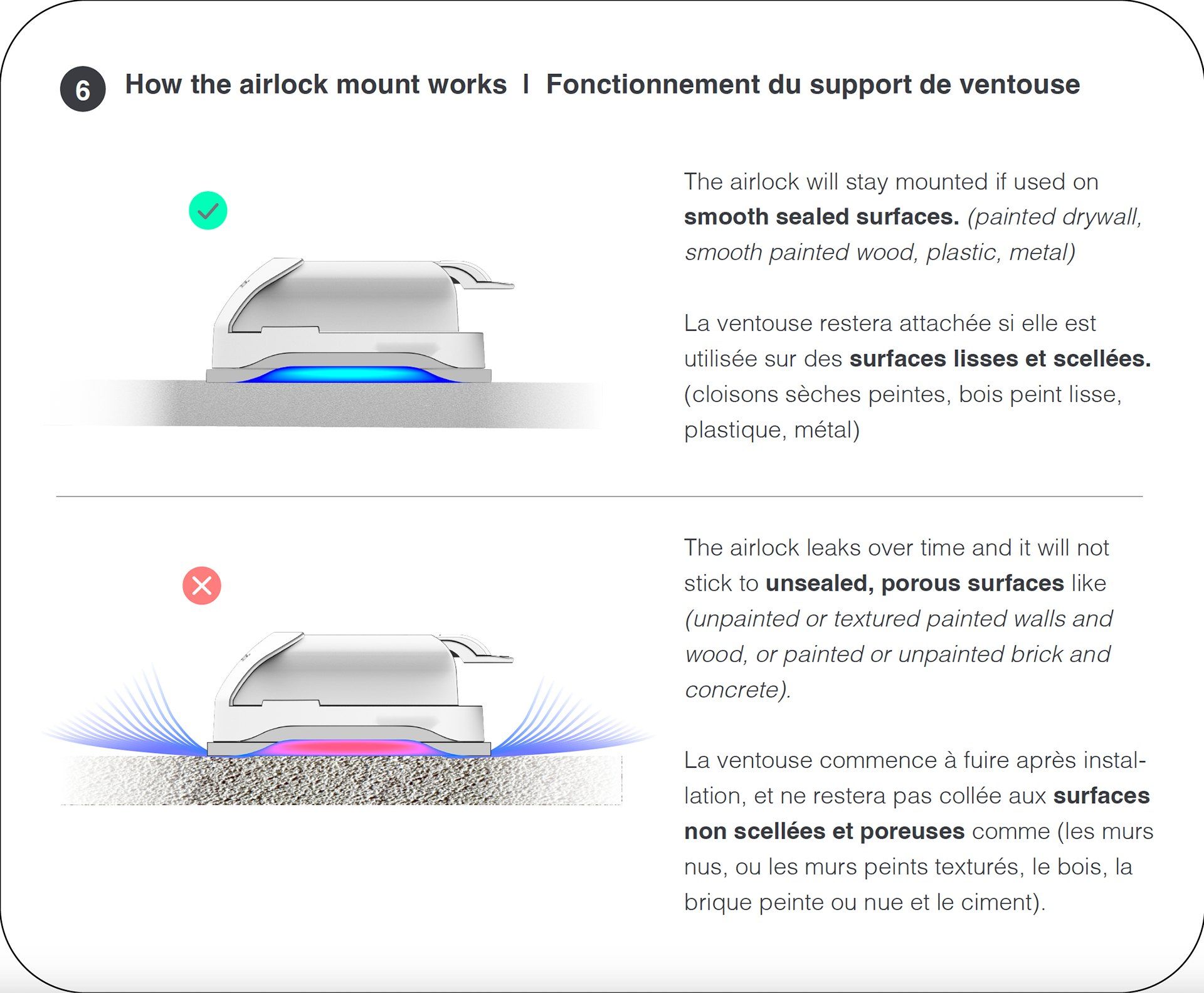

A page from the user guide explaining how the airlock suction mount seals to a wall.
User guide. How the airlock holds.

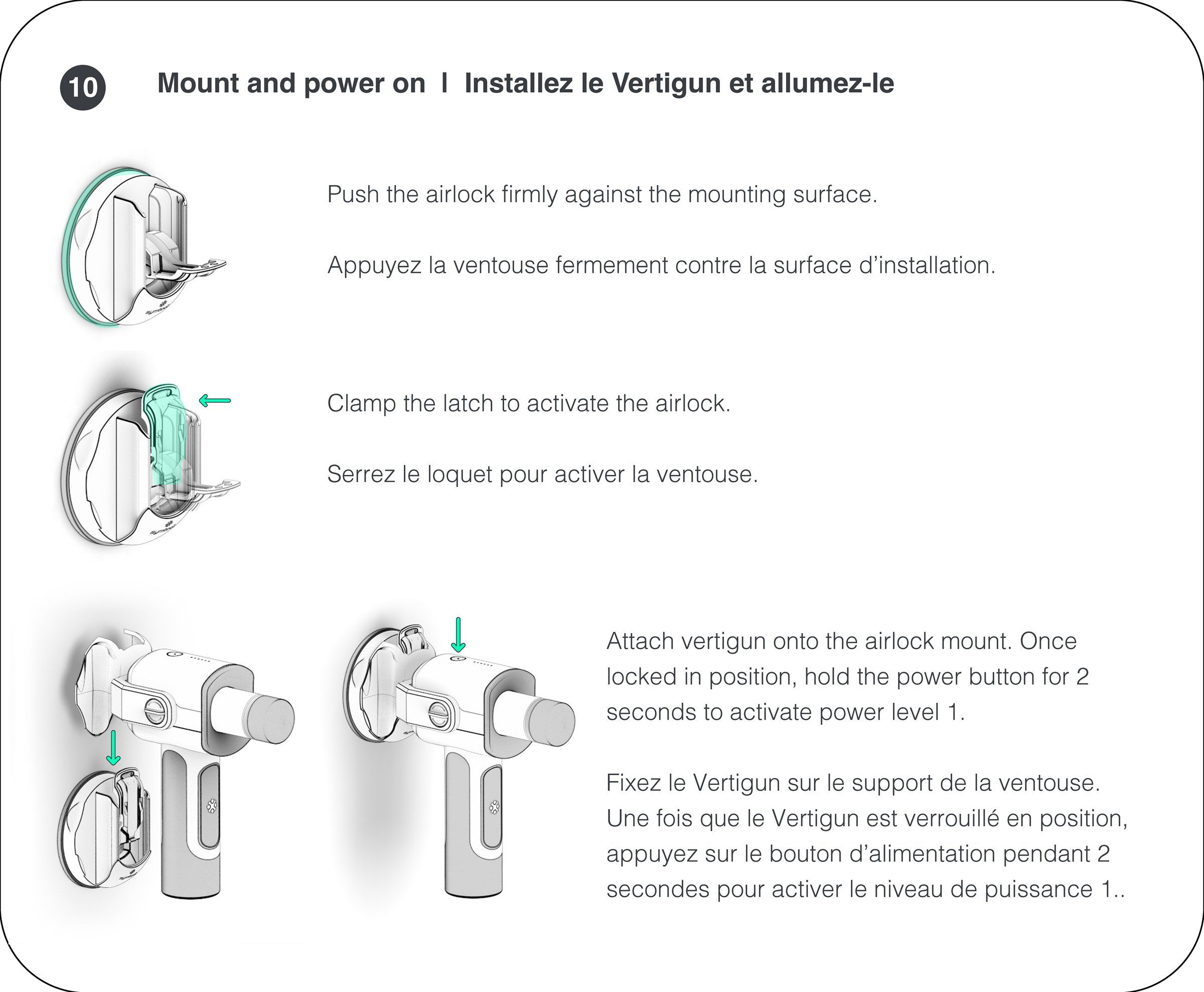

A page from the user guide showing the steps to mount the unit on a wall.
User guide. Mounting steps.

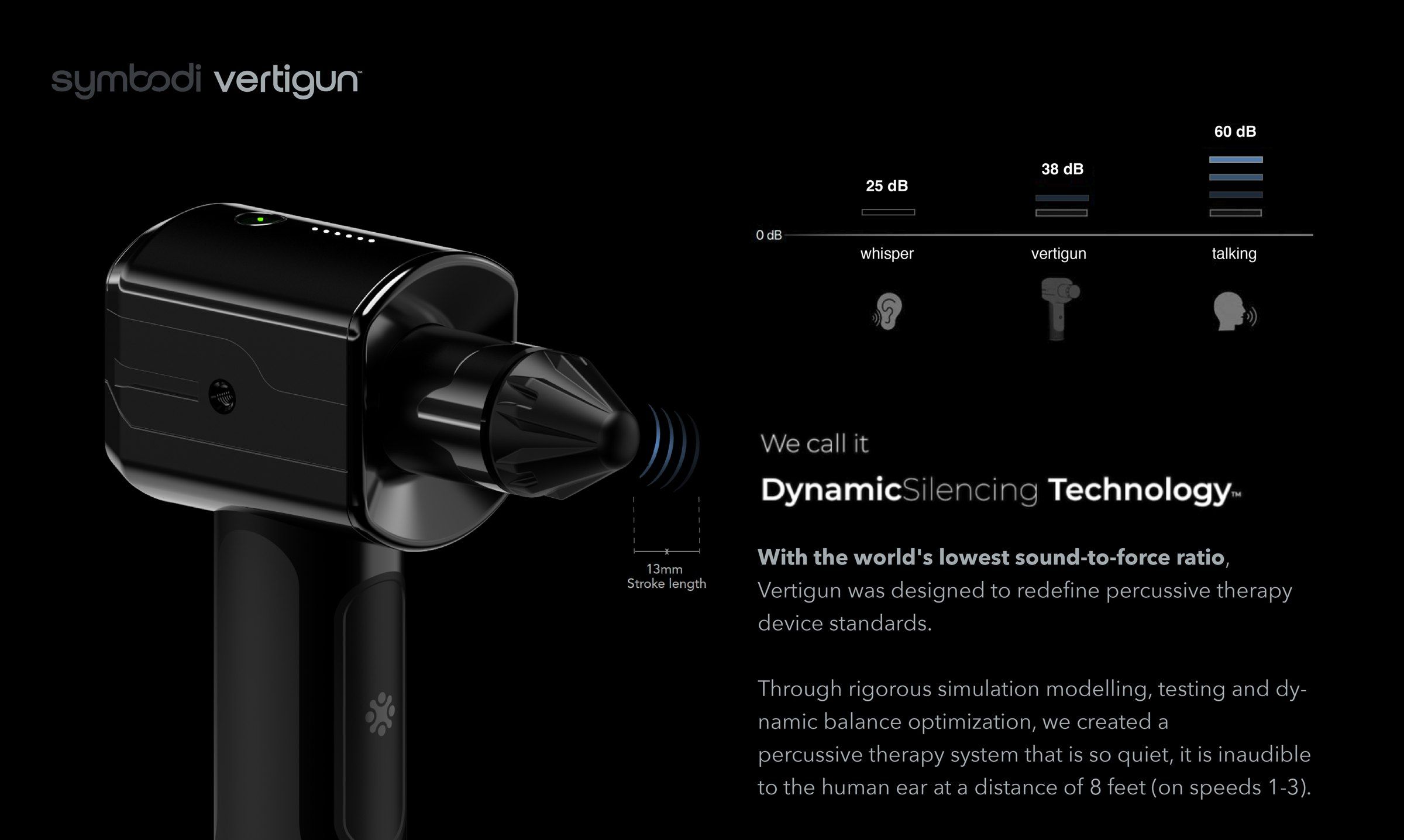

A dark render showing the sound engineering inside the Vertigun housing.
Sound engineering inside the housing.
Line drawings from the PCT patent application for the percussive massaging device.
PCT patent drawings.
